Instant Civic Improvement
Set your city up for the EV revolution by installing SmartTWOTM EV charging stations. They’re practically indestructible and offer high uptime.
Rugged and reliable
SmartTWOTM charging stations offers a rugged, weather- and vandalism- resistant aluminum enclosure, withstanding the beating public chargers endure most days. And our patented door locking mechanism protects your valuable charging connector.
Versatile and easy to use

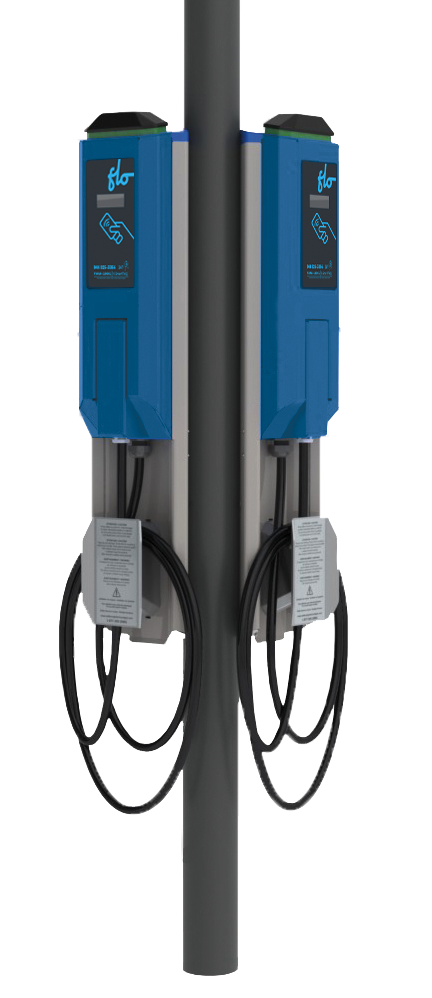

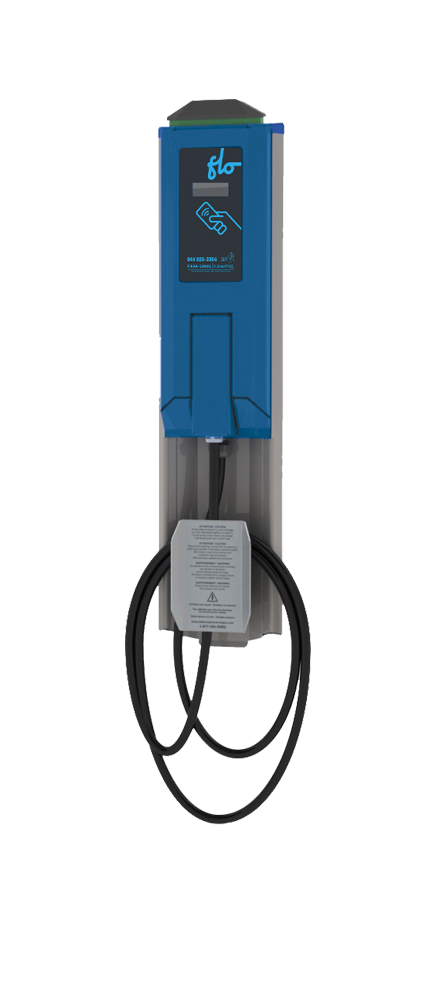

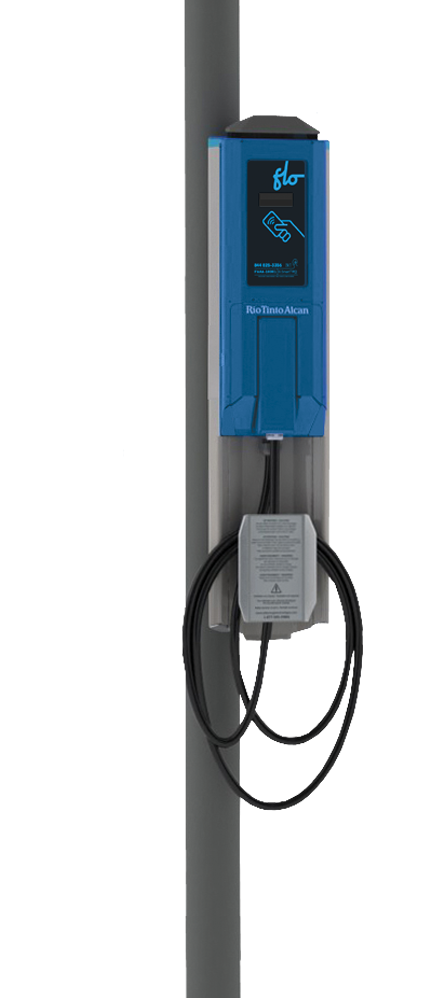

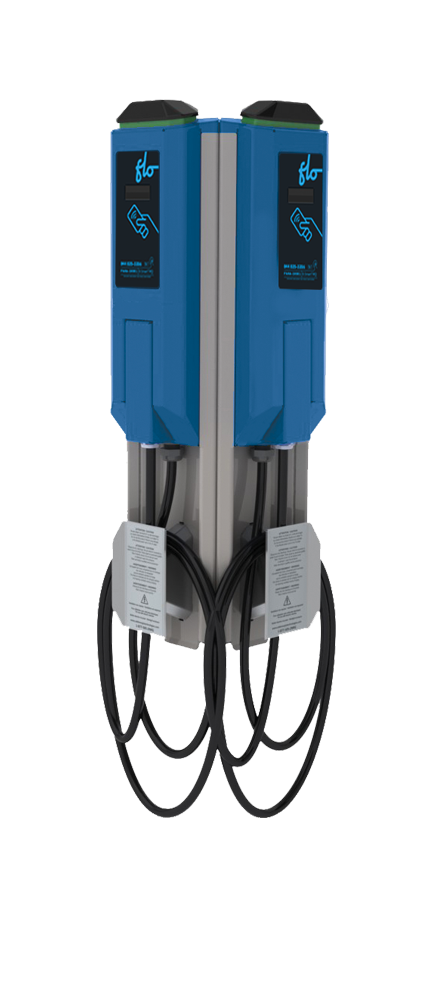

They’re built to accommodate multiple curbside charging configuration needs with versatile wall, pedestal and pole-mount installation options.
Unique curbside solution
SmartTWO-BSRTM charging stations are specifically designed for curbside installation, making them ideal for city streets or busy areas. SmartTWO-BSRTM stations can power two EVs simultaneously and are equipped with a clever cable management system that retracts its cables after each use.
The FLO SmartTWOTM advantage
Our reliable, extremely durable SmartTWOTM chargers offer a full range of accessories and services designed for the best possible charging experience.
Convenient cable management
The SmartTWOTM is crafted to keep your station operable and safe from tripping hazards. Its twisted–steel cable design eliminates tearing, and its unique counterweight system ensures smooth retraction.
Integrated electrical panel & gateway
The SmartTWO-BSRTM station is designed so that the utility meter and electrical subpanel can be easily integrated directly with the charging station. This saves you money on installation.
Backed by FLO
Rest easy with complete after-sale support via FLO’s Network Operation Center and 24/7 EV driver phone support. And with manufacturing and assembly in North America, spare parts are readily available, limiting possible downtime.
Global Management Services
We’ll provide dependable station monitoring with automatic software and firmware updates, alarms and remote diagnostic services. You’ll maintain complete control of your stations public access, enabling you to restrict use to specific drivers if needed.
Extensive warranty
FLO stands behind our craftsmanship with one of the most extensive warranties in the industry.
Compare SmartTWOTMCharging Stations
SmartTWOTM
SmartTWO-BSRTM
Case Study: City of Los Angeles
As part of their “Green New Deal”, the city of Los Angeles has committed to transitioning to a more sustainable model of transportation in the immediate future and they partnered with FLO.
Case Study: City of Kingston, Ontario
The City has developed a Climate Action Plan which aims to cut greenhouse (GHG) emissions from the community by 30 per cent by 2030 and achieve carbon neutrality by 2040. A key element of this work has been the deployment of a comprehensive EV charging network, and they chose to partner with FLO.
Technical Specifications
Physical components
- Aluminum Type 3R enclosure
- SAE J1772 connector(s)
- RFID card reader: ISO 14443 A/B, ISO 15693, NFC
- Customizable signage panel: (H x W): 500 mm (19.7″) x 175 mm (6.9″)
- Cable: 6.4 m/ 21-ft (standard), 7.62 m / 25-ft (optional)
- Weight: SmartTWOTM: Wall-mounted configuration: 20 kg (45 lbs) Pole-mounted configuration: 27 kg (59 lbs) , SmartTWO BSRTM: 79.4 kg (175 lbs)
Electrical & network specifications
- Standard: 30 A @ 208 VAC or 240 VAC for each charging station
- Charging power: 6.2kW-7.2kW (30A at 208V or 240V)
- Output current: 30A
- Frequency: 60 Hz
- Integrated GFCI 20 mA, auto reset
- Communication interface: ZigBee – IEEE 802.15.4 meshed network
- Networking: Cellular – 4G LTE
Environmental specifications & certifications
- Operating temperature: -40 °F to 122 °F / -40 °C to +50 °C
- Storage temperature: -40 °F to 158 °F / -40 °C to +70 °C Humidity: Up to 95% (non-condensing)
- ADA compliant (SmartTWO-BSR, US only)
Certifications:
- CSA certified for Canada and United States
- UL 2594
- UL 2231-1
- UL 2231-2
EMC compliance
- USA – FCC 47 CFR 15, class A
- CAN – ICES-3 (A) / NMB-3 (A
